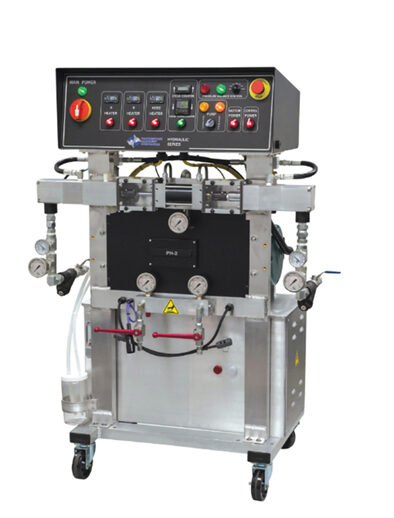

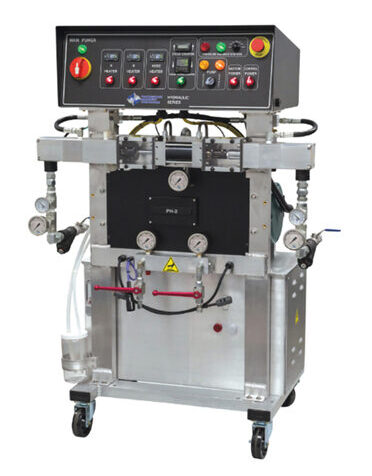

PMC PH-2 Hydraulic Proportioner
Straightforward Operation, Serviceability and Value
Polyurethane Machinery Corporation (PMC) made the PH-2 hydraulic spray foam proportioner for contractors who want dependable hydraulic performance with straightforward controls and proven operation.
Delivering up to 28 lb./min (12.7 kg/min) and 2,000 psi (138 bar) working pressure, the PH-2 works well for residential insulation and other polyurethane foam applications.
ICAFe PCR usually recommends the PH-2 to contractors seeking straightforward operation, serviceability, and long-term value.

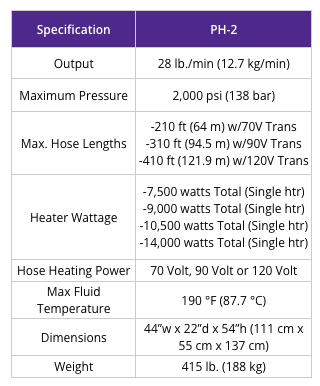

| Specification | PH-2 |
|---|---|
| Output | 28 lb./min (12.7 kg/min) |
| Maximum Pressure | 2,000 psi (138 bar) |
| Max. Hose Lengths | -210 ft (64 m) w/70V Trans -310 ft (94.5 m) w/90V Trans -410 ft (121.9 m) w/120V Trans |
| Heater Wattage | -7,500 watts Total (Single htr) -9,000 watts Total (Single htr) -10,500 watts Total (Single htr) -14,000 watts Total (Single htr) |
| Hose Heating Power | 70 Volt, 90 Volt or 120 Volt |
| Max Fluid Temperature | 190 °F (87.7 °C) |
| Dimensions | 44”w x 22”d x 54”h (111 cm x 55 cm x 137 cm) |
| Weight | 415 lb. (188 kg) |
Dual-Acting Horizontal Pump
The dual-acting piston displacement pump in every PH-2 proportioner helps eliminate pressure drops by moving material to the manifold on both strokes. See how material flows through the A and B sides of the system.
Unlike traditional single-acting pumps that move material on only one stroke, the PH-2’s dual-acting design delivers continuous material flow throughout the pumping cycle. The result is smooth, on-ratio performance, dependable operation, and the consistent output spray foam and polyurea contractors need to keep projects moving.
